Coin Switch with Trip Wireform - LL/UR Mounting:

Price: $8.49 each

Status: In Stock
(12 Available)

Order:



Part #: 42-1351-00
Condition: New

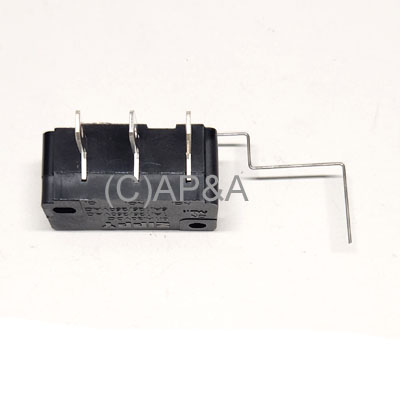

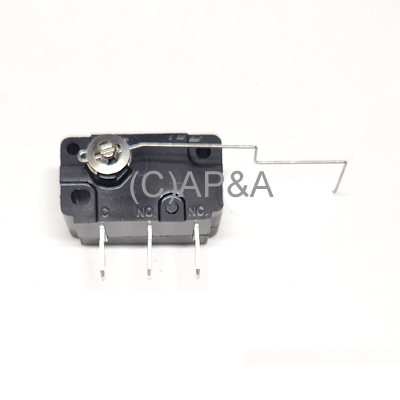

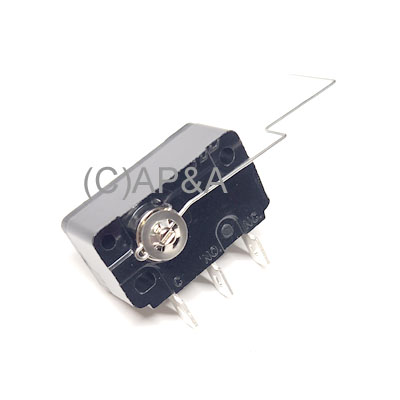

Large microswitch with 3-inch straight trip/actuator wire. Screw mounting holes in lower left (LL) and upper right (UR) of switch body, as pictured. 3 straight solder lugs on bottom of switch body (Common, Normally Open, Normally Closed). Bend wireform to fit application, as required, or order # 27-1075 for later-model Bally/Williams games taking U.S. Quarters.

This switch is commonly found on older/vintage games, and some late-model units. Fits coin switch and also some playfield applications (ball trough, etc).

Replaces Bally # ASE-277-178, E-108-92, CoinCo # 27-1092, E53, F53, Omron # C-563-1, and similar others.

Switch body measures 1-5/32 inches long x 11/16 inches tall x 15/32 inches thick (30 x 18 x 12mm). Mounting holes measure 1-1/16 inches (27mm) center-to-center.

NOTE: Please confirm measurements and fit of this part on your particular game before ordering as this part is considered an electronic item and is not returnable.

NOTE: No returns on Electronics - all sales final.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    BALLY: Black Jack, Centaur, Centaur II, Deluxe Fun Cruise, Eight Ball, Eight Ball Deluxe, Eight Ball Deluxe Limited Edition, Elektra, Evel Knievel, Fathom, Fireball II, Flash Gordon, Frontier, Fun Cruise, Mata Hari, Medusa, Night Rider, Power Play, Silverball Mania, Strikes and Spares, more

    STERN: Flight 2000, more

    WILLIAMS: Black Knight 2000, Comet, Cyclone, Earthshaker, F-14 Tomcat, Grand Lizard, High Speed, Millionaire, Riverboat Gambler, Road Kings, Swords of Fury, Taxi, Whirlwind, more
