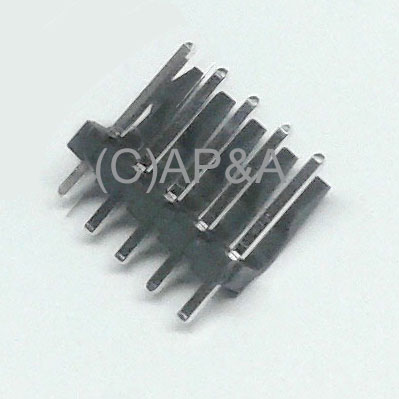

Header Pin Connector - 5-Position - 0.156 Inch Spacing Break-Away w/Lock:

Price: $1.92 each
Status: In Stock
(49 Available)

Order:

Part #: 26-48-1055
Condition: New

Header pin connector, 0.156-inch spacing, break-away, with friction lock. Replaces Bally/Williams # 5791-10862-05.

Pin Length: See image below for specs. Some applications may require a longer or shorter pin- check your application before ordering. Combine header strips on PC board to make longer connectors- such as two 10-pin headers to make a 20-pin header.

Friction Lock: This header comes with a friction lock tab molded in to the back side which will lock into place on corresponding housings that have locking ramp tabs. Headers with friction lock can also be installed with housings that have no locking ramp tabs, and vice-versa.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Addams Family, Addams Family Gold, Attack From Mars, Black Rose, Cactus Canyon, Champion Pub, Cirqus Voltaire, Corvette, Creature From the Black Lagoon, Doctor Who, Dr. Dude, Gilligans Island, Harley Davidson (Bally), Indianapolis 500, Judge Dredd, NBA Fastbreak, Party Zone, Popeye Saves the Earth, Revenge From Mars, Safe Cracker, Scared Stiff, Shadow, Theatre of Magic, Twilight Zone, WhoDunnit, World Cup Soccer '94

MIDWAY: Hot Shots (basketball)

WILLIAMS: Congo, Demolition Man, Dirty Harry, Dracula, Fish Tales, Flintstones, Funhouse, Getaway High Speed II, Hurricane, Indiana Jones (Williams), JackBot, Johnny Mnemonic, Junk Yard, Machine: Bride of PinBot, Medieval Madness, Monster Bash, No Fear, No Good Gofers, Road Show, Slugfest, Star Trek: The Next Generation, Star Wars: Episode 1, Tales of the Arabian Nights, Terminator 2, White Water
