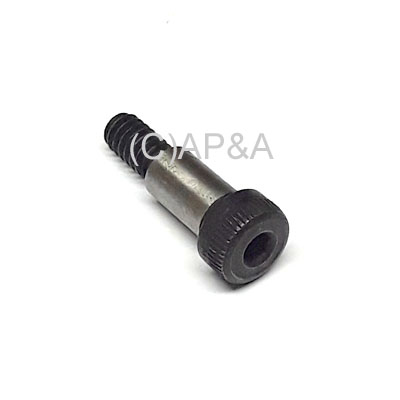

Flipper Crank Shoulder Bolt w/ Built-in Bushing 10-32 x 1 Inch (Data East) (SEE NOTE):

Price: $3.77 each

Status: In Stock
(2 Available)

Order:



Part #: 231-5019-01
Condition: New
Replacement shoulder bolt with built-in bushing for flipper plunger/link/crank used in some Data East pinball games (see notes, and game listing below). This part replaces the factory original bolt, which is no longer available.

Overall length 1 inch. Threads are #10-32 and measure 3/8 inch long. Unthreaded shoulder portion measures 7/16 inches in length, 1/4 inch diameter. Cap screw head- uses allen wrench to install/remove.

NOTE 1: The built-in bushing section of this bolt measures 1/4 inch outer diameter, so requires a 1/4-inch opening in the flipper crank for installation. If your flipper crank will not accomodate this 1/4-inch diameter bolt, you may need to order shoulder bolt # 231-5019-00 instead, along with separate bushing # 530-5139-00.

NOTE 2: A few different sizes of shoulder bolts were used on Data East games during production. Even if your game manual calls for this part number, it may not fit on your game, so please verify fit first, using the measurements above, before you order.

  • Ask a question about this item

    Used In The Following Games:
    (CONFIRM MEASUREMENTS ABOVE BEFORE ORDERING)

    DATA EAST: Guns N Roses, Jurassic Park, Last Action Hero, Lethal Weapon 3, Tales From the Crypt, Tommy
