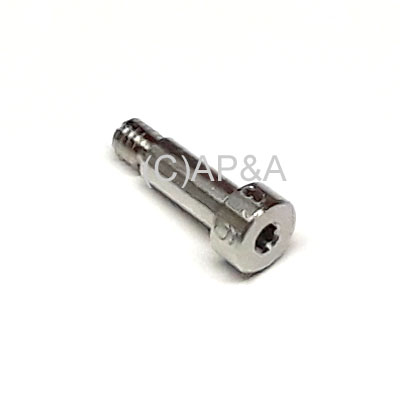

Flipper Crank Shoulder Bolt (Replacement) 8-32 x 25/32 Inch x 0.184 dia (Data East) (SEE NOTES):

Price: $6.29 each

Status: In Stock
(2 Available)

Order:



Part #: 231-5019-00A
Condition: New
Replacement shoulder bolt for flipper plunger/link/crank used in some Data East pinball games (see notes and game listing below). This part replaces the factory original bolt # 231-5019-00, which is no longer available.

Overall length 15/16 inch. Threads are #8-32. Unthreaded shoulder portion measures 7/16 inches in length, 0.184 inch diameter (approx. 3/16 inch). 5/16-inch socket head (use with small allen wrench). Use with bushing # 530-5139-00.

NOTE 1: The diameter of this bolt is 0.184 in (approximately 3/16 in), so if the hole in your flipper crank is larger than this, you may need larger shoulder bolt # 231-5019-01 instead.

NOTE 2: A few different sizes of shoulder bolts were used on Data East games during production. Even if your game manual calls for this part number, it may not fit on your game, so please verify fit first, using the measurements above, before you order.

  • Ask a question about this item

    Used In The Following Games:
    (CONFIRM MEASUREMENTS ABOVE BEFORE ORDERING)

    DATA EAST: Guns N Roses, Jurassic Park, Last Action Hero, Lethal Weapon 3, Tales From the Crypt, Tommy
