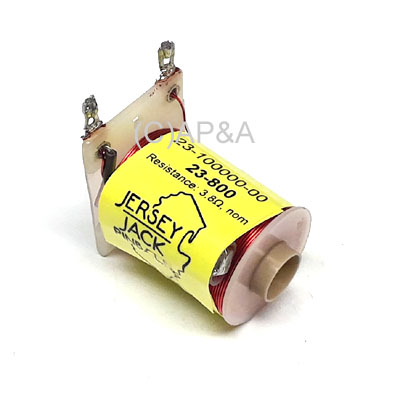

Coil - 23-100000-00 (23-800) (Jersey Jack) with Thermal Breaker (SEE NOTE):

Price: $35.78 each
Status: In Stock
(23 Available)

Order:

Part #: 23-100000-00-TB
Condition: New

Coil for electro-magnet / ball-grabber on some Jersey Jack games to grab/stop the ball momentarily, or to pulse and randomly affect the trajectory of the ball. Approx. 4 ohms resistance. Includes standard coil sleeve, no diode across solder lugs.

Replaces Jersey Jack #s 23-100000-00, 23-0003-00 and 23-000003-00.

NOTE: This coil includes a thermal breaker. Jersey Jack issued two coils under this same part number- one without a thermal breaker, and one with a thermal breaker (this coil). If you need the version without the thermal breaker, order part # 23-100000-00 instead. Not sure which version you need? Contact us.

NOTE: No returns on Coils & Coil Parts - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
JERSEY JACK: Willy Wonka
