Microswitch Assembly - Replacement (Data East / Sega) (SEE NOTES):

Price: $13.99 each
Status: In Stock
(8 Available)

Order:

Part #: 180-5118-01
Condition: New

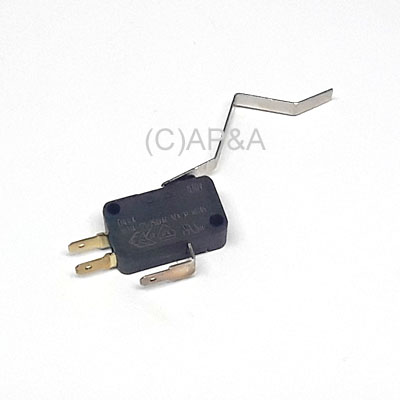

Replacement microswitch assembly with blade actuator for ball trough in some Data East and Sega games.

Replaces original discontinued part # 180-5118-00.

Also replaces # 500-5683-00, 500-5683-01, 28078.

NOTES:

This is a modern aftermarket replacement switch. Fit and function are same as discontinued original switch, with minor physical differences noted below.
3/16 inch wide actuator blade (discontinued original had 5/32 inch wide blade).
Forward-mounted actuator blade (discontinued original was rear-mounted).
10 grams activation force. Manufacturer of discontinued original (E-Switch) rates this line of their switches (LS Series) at minimum 25 grams activation force. So per specs, this replacement switch should require less force to activate than the discontinued original.
Some adjustment may be required after installation for proper operation, as is common with any switch replacement.
See additional image below for typical wiring connections.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Guns 'n Roses, Jurassic Park (Data East), Last Action Hero, Maverick the Movie, Tales From the Crypt, Tommy, WWF Royal Rumble

SEGA: Frankenstein, Maverick the Movie
