Slingshot Bumper Leaf Switch (Data East/Sega/Stern):

Price: $9.79 each

Status: In Stock
(14 Available)

Selection: (Click to Select)
Order:



Part #: 180-5054-00
Condition: New
Vertically-mounted leaf switch for slingshot bumpers. 3 solder lugs.

Direct replacement for Data East, Sega, and new Stern games.

Also fits some other makes/models with no modification, including Bally, Williams, old Stern, and more.

May require removal of factory rivets which hold switch to mounting bracket (rivets can be replaced with new rivets, or with small screws and nuts).

Most games take two (2) of these per slingshot bumper.

MEASUREMENTS:
  • Overall length: 3-1/16 inches.
  • Length of long blade out from switch stack: 1-15/16 inches.
  • Length of short blade out from switch stack: 1-3/8 inches.
  • Contact points: 1-7/32 inch out from switch stack.
  • Switch stack body: 3/4 inches long x 3/8 wide x 3/8 high.
  • Screw mounting holes: 1/8 inch diameter, 3/8 inch center-to-center.
Replaces Williams # SW-1A-114, SW-1A-120-1, Stern # 180-5054-00, Capcom # SW00127, and possible others. Can substitute for Capcom # SW00127, Bally/Williams #SW-1A-120, and on Bally/Williams assembly # B-8734-1.

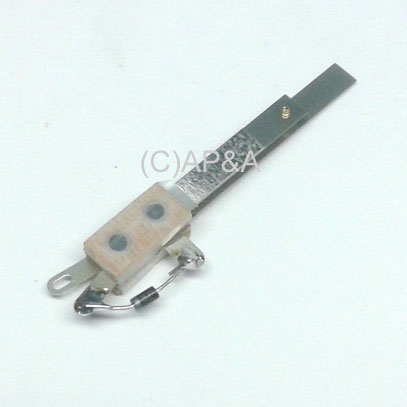

Select with or without diode above, when ordering (normally ships without diode). Image below shows switch with diode attached.

Additional Images:
Click to Enlarge



NOTE: No returns on Electronics - all sales final.

  • Ask a question about this item

    Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    DATA EAST: Back to the Future, Batman, Guns 'n Roses, Jurassic Park, Last Action Hero, Lethal Weapon 3, Star Wars (Data East), Tales From the Crypt, Tommy

    SEGA: Batman Forever, Lost World Jurassic Park

    STERN: Avatar, Avatar Limited Edition, Big Buck Hunter Pro, Family Guy, Lord of the Rings, Monopoly, Pirates of the Caribbean (Stern), Ripley's Believe it or Not!, Roller Coaster Tycoon, Rolling Stones (Stern), Simpsons Pinball Party, Sopranos, Star Trek Pro (Stern), TRON: Legacy, Walking Dead LE, X-Men Wolverine LE
