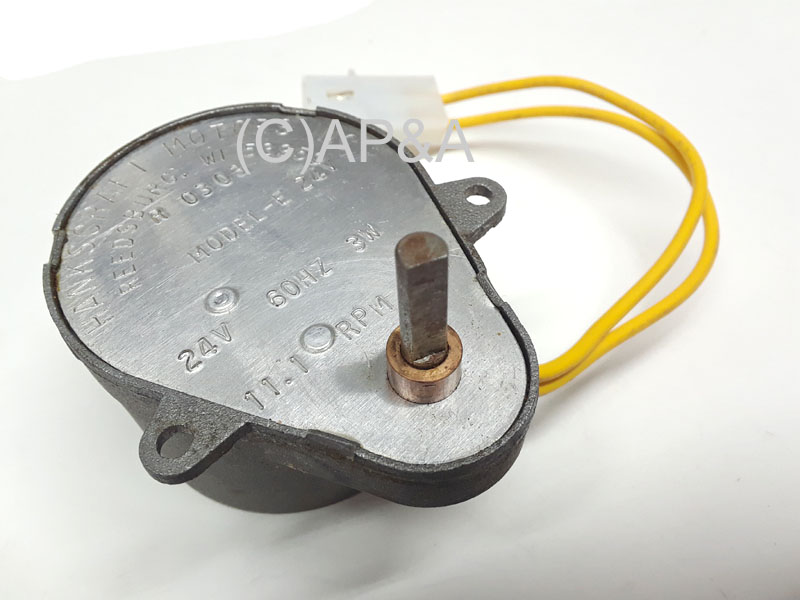

Motor - 24 VAC 11 RPM 60Hz (SEE NOTES):
Price: $129.99 each
Status: Out of Stock - Discontinued more info...
Part #: 14-7941
Condition: New
|
|
|
New replacement motor for various devices in multiple games. See fitment list and notes below.
Specs: 24 volts AC, 11rpm, 60Hz, counter-clockwise (CCW) rotation, wire leads. No polarity with AC motors- wires can be connected either way.
Vital Measurements:- Shaft length: 5/8 inch
- Shaft bushing (brass) length: 3/16 inch
- Shaft + bushing: 13/16 inch
- Shaft diameter: 3/16 inch
- Screw mounting holes: 2
- Screw mounting hole diameter: 1/8 inch
- Screw mounting hole distance: 1-7/8 inches, center-to-center
- Motor and gearbox housing thickness: 1-1/2 inches
- Motor and gearbox housing diameter: 2 inches
Replaces old Data East # 041-5001-00 (see note below), and 515-5256-00 (with connector added - see note below), and Williams # 14-7941.
NOTES:- Shaft on this new motor may be slightly larger than shaft on older motors from decades past. See measurements above, and please verify fit on your game before ordering, as electrical parts such as motors are not returnable.
Collar on the device in your game may possibly be drilled-out larger to accommodate the larger shaft on this motor. - Available with or without connector (select above when ordering). Ships WITHOUT connector by default. Connector is a 2-pin female connector housing with 0.093 inch male pins (see additional image below for example).
Fitment List:- Data East Batman target up/down
- Data East Phantom of the Opera organ up/down (see note above regarding shaft diameter)
- Data East Star Wars Death Star target up/down
- Williams PinBot visor up/down
ELECTRIC MOTOR WARRANTY:
30 days from receipt. Part only. Does not cover shipping/handling or any labor costs.
Motor Shaft: DO NOT manually turn the motor shaft if you need to move it to a different position. Correct power must be applied to the motor if the shaft needs to be moved. Manually turning the shaft can damage the internal gears which will void the warranty.
Power: Powering the motor from any power source other than the electrical connector provided inside the game can cause damage to the motor, and will void the warranty.
Game Parts: Any pre-existing problems in your game that can damage the motor will also void the warranty. Ensure that any parts that are activated by the motor are free-moving (not binding or jammed in any way) and that supply voltage is correct.
Mounting: Ensure that motor is mounted properly with hardware secure and motor flush with mounting plate (or bracket), and that set screw for motor shaft (if used) is secure before applying power. Incorrectly installed motors can be damaged and will void warranty.
Additional Images:
Click to Enlarge
NOTE: No returns on Electronics - all sales final.
Ask a question about this item
Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Batman, Phantom of the Opera, Star Wars
WILLIAMS: PinBot
|
