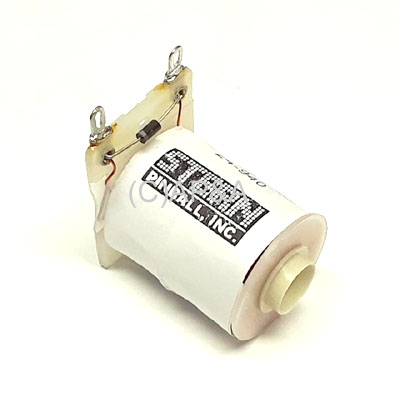

Coil - 090-5036-0T (24-940):

Price: $16.75 each

Status: In Stock
(4 Available)



Part #: 090-5036-0T
Condition: New
Coil (solenoid) used in some Data East, Sega, and late-model Stern Pinball games. Typically used for ball-launcher mechanisms.

Includes flanged coil sleeve # 03-7067 and 1N40041 diode across top (front) of solder lugs. Also replaces # 090-5036-01.

NOTE: No returns on Coils & Coil Parts - all sales final.

  • Ask a question about this item

    Used In The Following Games:
    DATA EAST: Guns N Roses, Jurassic Park, Last Action Hero, Rocky and Bullwinkle, Star Wars, Tales From the Crypt, Tommy, WWF Royal Rumble

    SEGA: Batman Forever, Baywatch, Frankenstein, Harley Davidson, Lost World Jurassic Park, South Park, Starship Troopers

    STERN PINBALL: Austin Powers, Ripley's Believe it or Not!, Roller Coaster Tycoon, TRON Legacy
