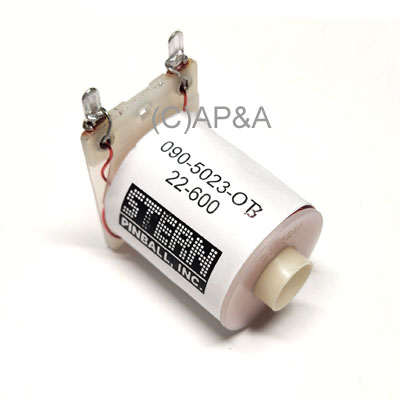

Coil - 090-5023-0B (22-600):

Price: $16.79 each
Status: In Stock
(3 Available)

Selection: (Click to Select)
Order:

Part #: 090-5023-0B
Condition: New

Strong coil for some Data East, Sega, and Stern Pinball games for ball auto-launcher mechanism and other ball kickers.

22-gauge wire with 600 turns. Approx. 2.6 ohms resistance.

Available with standard or flanged coil sleeve (select above when ordering- ships with standard sleeve by default).

Includes diode across bottom (back) of solder lugs.

NOTE: No returns on Coils & Coil Parts - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
DATA EAST: Batman, Checkpoint, Guns N Roses, Star Trek, Teenage Mutant Ninja Turtles, Tommy
