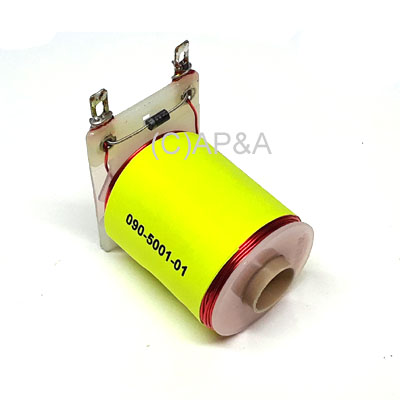

Coil - 090-5001-01 (23-800):

Price: $18.43 each

Status: In Stock
(114 Available)

Order:



Part #: 090-5001-01
Condition: New
General-purpose coil (solenoid) used in many Data East, Sega, and Stern Pinball games. 23-gauge wire with 800 turns, approx. 4 ohms resistance.

Includes standard coil sleeve # 03-7066 and diode across top (front) of coil lugs.

Also replaces 090-5001-0T, 090-5001-02, and 090-5001-ND (remove diode).

NOTE: No returns on Coils & Coil Parts - all sales final.

  • Ask a question about this item

    Used In The Following Games:
    DATA EAST: Maverick the Movie, more
