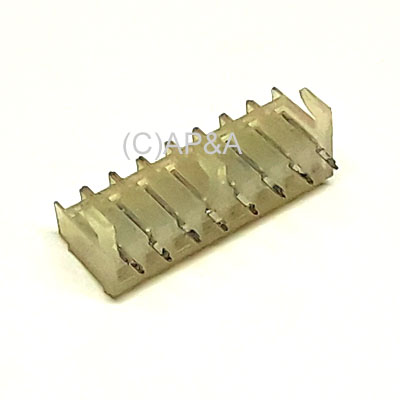

Connector Housing - 8-Position Bottom Entry - 0.156 Inch Spacing (USED):

Price: $1.99 each
Status: In Stock
(18 Available)

Order:

Part #: 09-52-3082U
Condition: Used - Good

Used connector housing for the top of Williams pinball driver boards in solid-state (SS) games made between 1977 and 1984. 8 pins per housing- use 5 per driver board for a total of 40 pin positions. Williams # 5792-09066-00.

NOTE: Matching male pins that go on the MPU board and fit into these female sockets on the driver board, are no longer available. MPU board requires a unique long-length pin which is no longer being made. If you need to replace a male pin on the MPU board, we recommend replacing with a used original pin in good condition, or trying to clean/repair existing pins. Standard male pins that we carry can be used on MPU board but are not quite long enough to make a good reliable connection with female sockets on driver board, and we do not recommend using them with these 09-52-3082 sockets.

Used part in good condition.

NOTE: No returns on Electronics - all sales final.

NOTE: No warranty or returns on used items. Used items are sold as-is, and all sales are final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Algar, Alien Poker, Barracora, Black Knight, Blackout, Contact, Cosmic Gunfight, Defender, Disco Fever, Dracula, Firepower, Firepower II, Flash, Gorgar, Hot Tip, Joust, Jungle Lord, Laser Ball, Laser Cue, Lucky Seven, Pharaoh, Phoenix (1978), Pokerino, Scorpion, Solar Fire, Star Light, Stellar Wars, Time Fantasy, Time Warp, Tri Zone, Varkon, Warlok, World Cup
