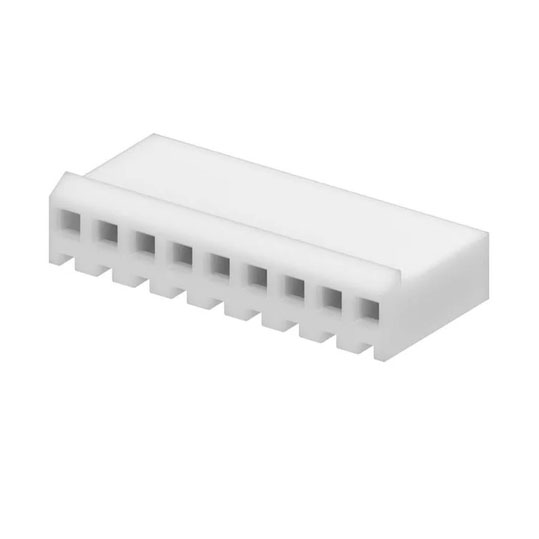

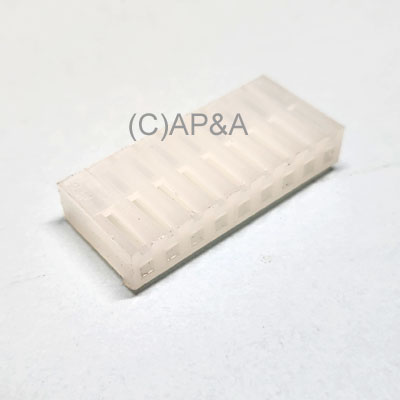

Connector Housing - 9-Position - 0.156 Inch Spacing:

Price: $0.88 each

Status: In Stock
(38 Available)

Order:



Part #: 09-50-3091
Condition: New
Connector housing, 0.156-inch spacing, with locking ramp. Crimp/solder pin type. Replaces Bally # E-00715-033. Pins sold separately- order part # 08-50-0189 (heavy-duty), or 08-50-0108 (standard).

Locking Ramp: Some housings come with locking ramp tabs molded in, which will lock into place on corresponding pin units that have friction lock backing. Housings with locking ramp can also be paired with pin units that have no backing for locking ramps, and vice-versa.

Image is sample only- actual size/color of item may vary.

NOTE: No returns on Electronics - all sales final.
