Click to Enlarge

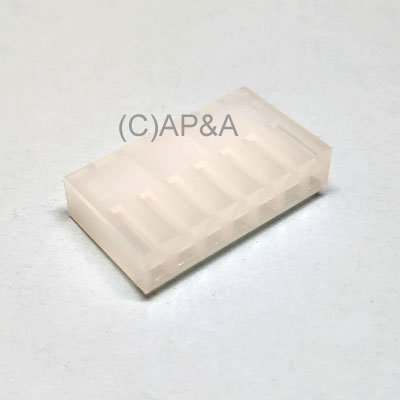

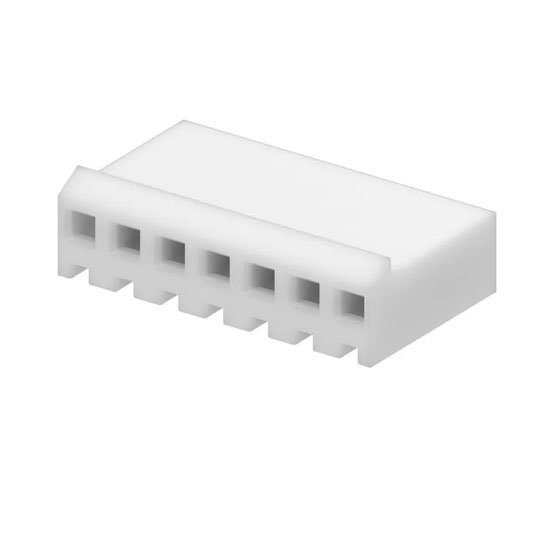

Connector Housing - 7-Position - 0.156 Inch Spacing:

Price: $0.69 each

Status: In Stock
(10 Available)

Order:



Part #: 09-50-3071
Condition: New
Connector housing, 0.156-inch spacing, with locking ramp. Crimp/solder pin type. Pins sold separately- use part # 08-50-0189 (heavy-duty), or 08-50-0108 (standard).

Replaces Bally # E-734-7, CF15607, Molex # 09-50-7071, 09-50-3071, 26-03-4070.

Locking Ramp: Some housings come with locking ramp tabs molded in, which will lock into place on corresponding header pin units that have friction lock backing. Housings with locking ramp can also be used with header pin units that have no backing for locking ramps, and vice-versa.

Image is sample only- actual size/color of item may vary.

NOTE: No returns on Electronics - all sales final.
