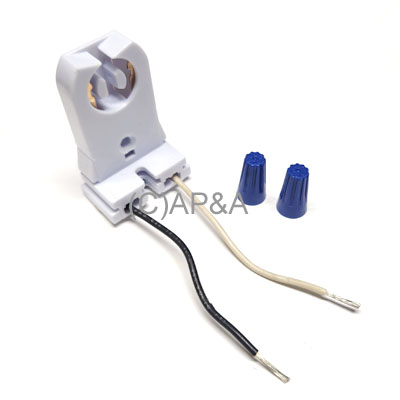

Lamp Socket Kit - Fluorescent Tube (Sega/Stern) (SEE NOTES):

Price: $12.07 each

Status: In Stock
(8 Available)

Order:



Part #: 077-5221-00-KIT
Condition: New
Easy-install fluorescent tube lamp socket kit for some Sega/Stern games (see game listing below).

Two required per game (one for each end of the lamp).

This kit includes a new lamp socket with pre-installed wire leads and wire nuts for quick/easy connection to existing wires in your game.

Front-mount wires on this new socket avoid contact with the metal mounting bracket (most factory originals had rear-mount wiring which pinched against the metal bracket and risked shorting-out).

INSTALLATION INSTRUCTIONS:
  1. Remove your old lamp socket and cut and strip the 2 wires that connect to it (strip wires 3/8-inch).
  2. Connect each stripped wire to a stripped wire on the new socket using the included wire nuts (there is no polarity so each wire can connect to either wire on the new lamp socket).
  3. Attach new lamp socket to mounting bracket in your game with original screw and insert lamp.
  4. Ensure that no wires are pinched or exposed, and that wiring is routed without contacting any other electrical or metal parts.
  5. Power up and test.
Non-shunted socket. Fits standard T8 or T12 diameter tube. Replaces part #s 077-5214-00, 077-5214-01, 077-5221-00.

NOTES:
  1. Style and brand of this part may vary from original factory parts in your game.
  2. We recommend replacing holders at both ends of your fluorescent tube at the same time if you want matching holders (same brand and style).
  3. This replacement holder does not include a mounting screw- re-use your old one, or order part # HWR02-100608.


Additional Images:
Click to Enlarge



NOTE: Most Lighting items are electronic parts and are not returnable. Contact us if you have any questions regarding return of this particular Lighting item.
