Click to Enlarge

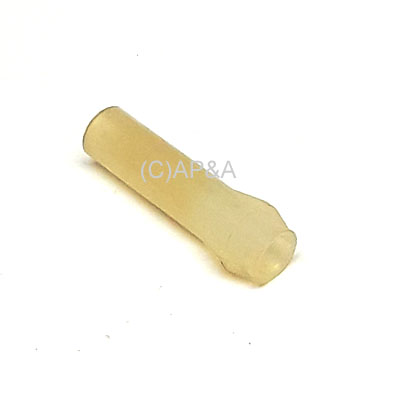

Connector Housing - 1-Position Female - 0.093 Inch Polarized (USED) (SEE NOTE):

Price: $0.30 each

Status: Out of Stock
Part #: 03-09-1011U
Condition: Used
Used Molex connector housing which uses 0.093-inch diameter connector pin and is polarized to fit together in only one direction. Use female crimp/solder pin # PINF093 (available separately). Replaces TE Connectivity / AMP # 770063-1.

Used part in good condition.

NOTE: CONNECTOR GENDER: Male/Female terms for electrical connectors can be confusing, and even appear backward to most people. The best rule-of-thumb to go by is: MALE housings traditionally use MALE pins, and FEMALE housings traditionally use FEMALE pins. DO NOT GO BY DESCRIPTION ALONE WHEN ORDERING! Please verify by the item image to confirm what you are ordering, as electrical parts are not returnable. Contact us BEFORE ORDERING if you have any questions.

MALE/FEMALE housings actually LOOK the opposite of their named gender, but MALE housings traditionally use MALE pins, and FEMALE traditionally use FEMALE pins. MALE housings are also referred to as PLUG housings, and FEMALE housings are also referred to as RECEPTACLE housings. Even though they may appear the opposite.

NOTE: No returns on Electronics - all sales final.

NOTE: No warranty or returns on used items. Used items are sold as-is, and all sales are final.
