Image Listing - Eight Ball Deluxe Limited Edition 2203
Copyright © 2023 Action Pinball & Amusement

Return to Game Listing

Image:
(Click to Enlarge)
Description:
Overall view.

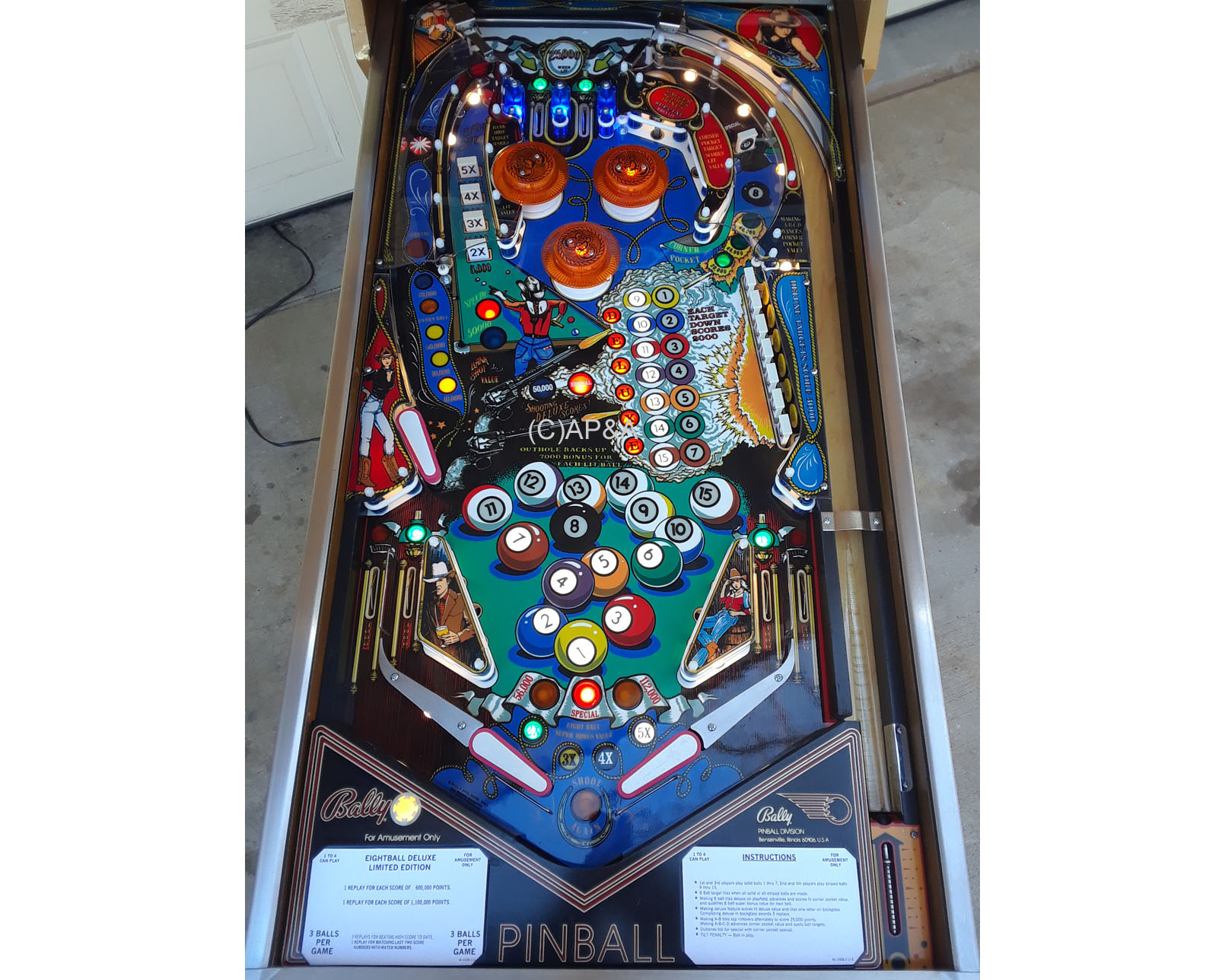

Full playfield view.

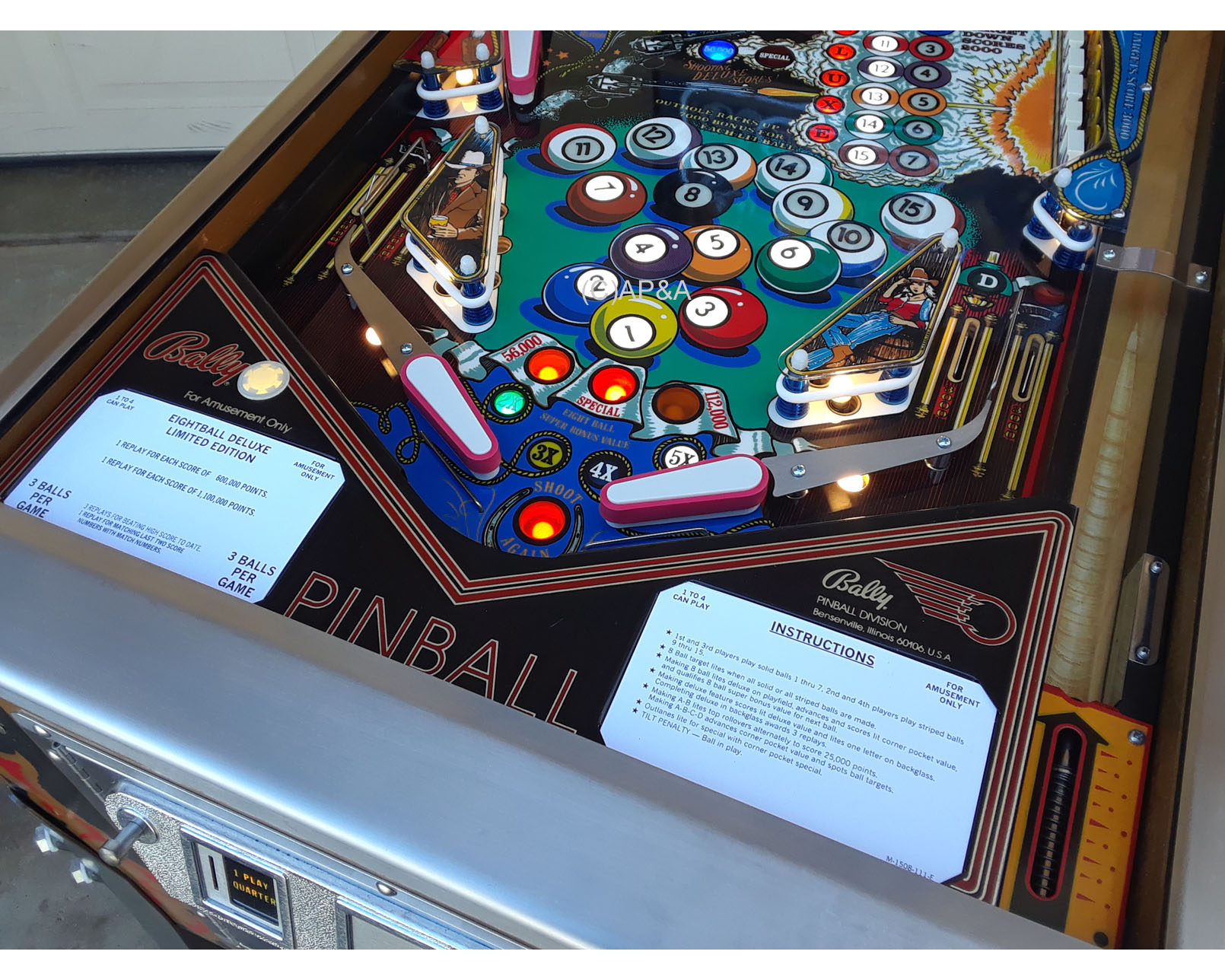

Lower playfield view. Game has original score card holder (apron). New score and instruction cards installed.
Lower playfield close-up. All new playfield plastics, blue plastic posts, flipper bats.MPU and solenoid/regulator boards in backbox. Both factory original, and reconditioned/upgraded.
New remote-mount battery kit installed for MPU board. Upgrade modifications made to solenoid board. Full modern LED lighting kit installed.
All new drop targets with reproduction decals installed. Fully rebuilt unit with new switch capacitors, wiring, fische paper insulators, and more. All new rubber rings. New nylon cap nuts and screws on all plastics. New heavy-duty mini posts installed (3 total).
Left flipper, inline drop targets, pop bumpers. All-new plastics, drop targets, and bumper caps/rings have been installed. New protective Mylar rings installed around pop bumpers for added protection.
Upper right corner - 8-ball drop target. Brand new rollover lane guides installed.
Mounting of the 2 large upper plastics has been custom-modified with new hardware parts for easier removal/installation for maintenance (see Game Condition & Details for more info).",
Comparison between clear plastics (ball guides) from aftermarket reproduction plastics set and much thicker custom-made Polycarbonate clear plastics that we had manufactured for this game. Four clear plastic ball guides are used on this game, and standard aftermarket pieces just won't hold up to pin balls during play and will quickly chip and break. New Polycarbonate pieces are even thicker (0.093-inch) than factory originals, so will hold up much better, and last much longer, than both aftermarket repros and factory pieces.

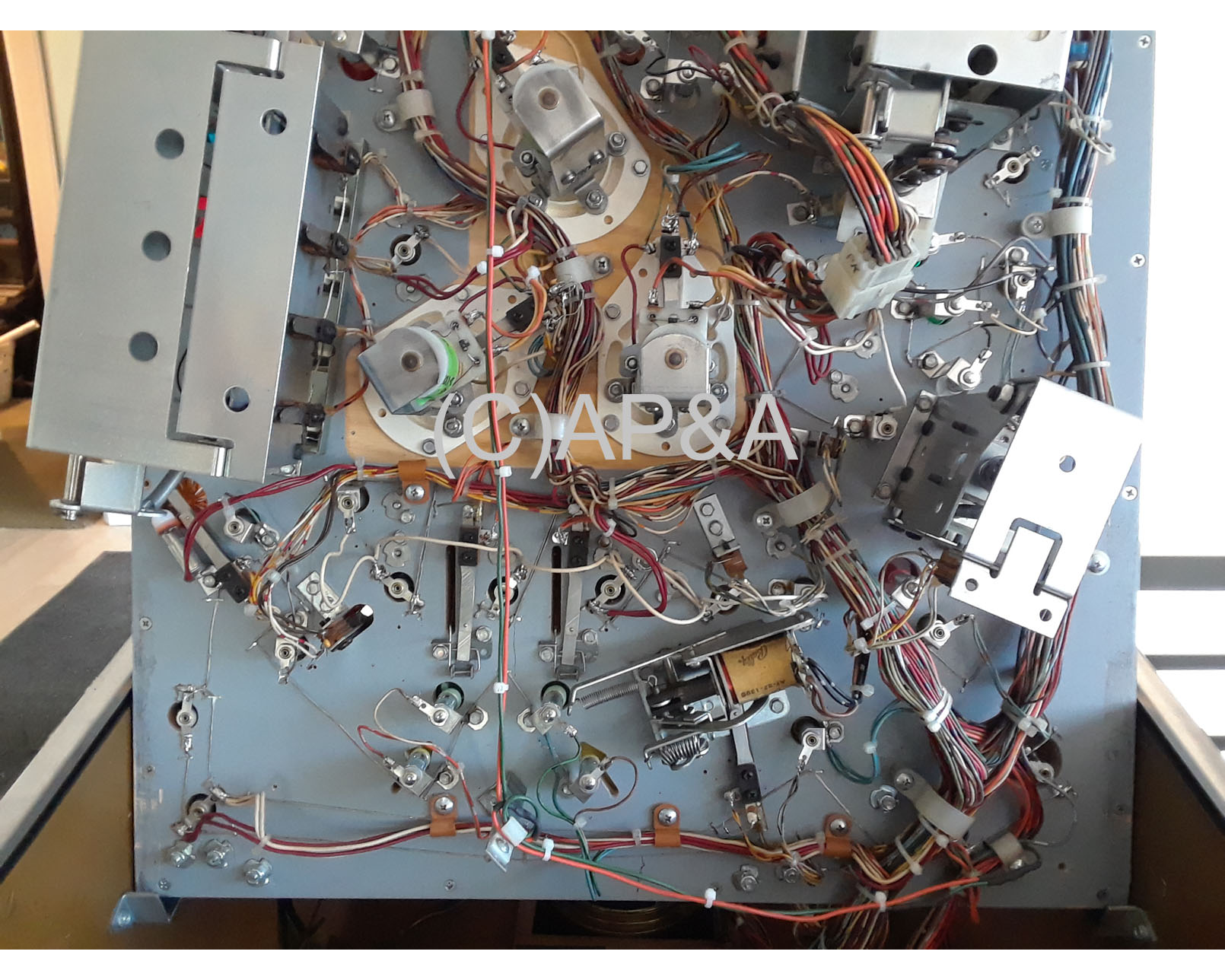

Lower playfield- underside. Original troublesome wedge-base lamp sockets have all been replaced with easier-to-use bayonet sockets, all throughout the entire playfield. All mechanisms fully reconditioned/rebuilt with new parts where needed.
Middle playfield- underside. Wiring harness fully removed, cleaned by hand, and reinstalled. All switches that use them have new capacitors installed.

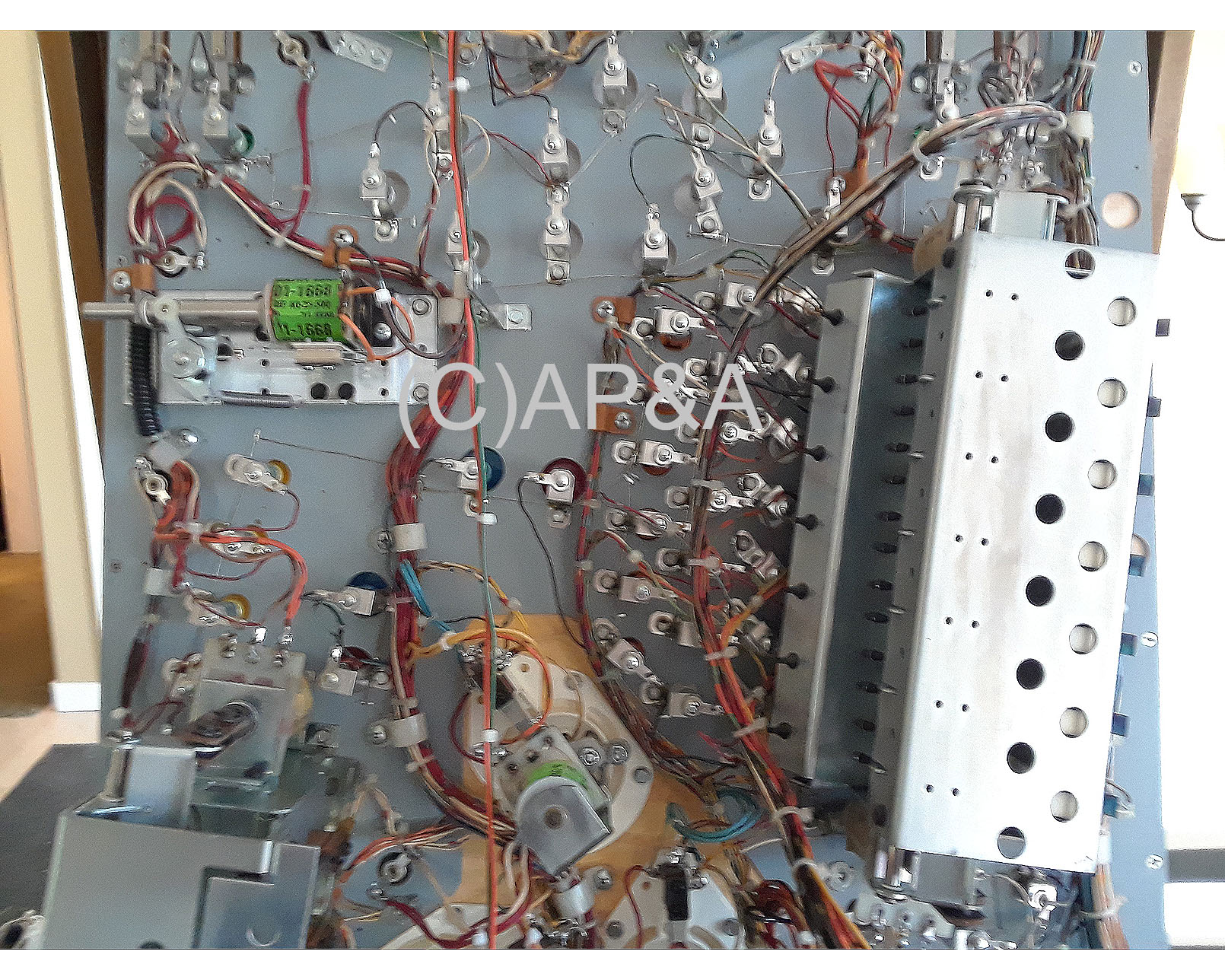

Upper playfield- underside. Pop bumpers have been fully cleaned, rebuilt, and reconditioned.

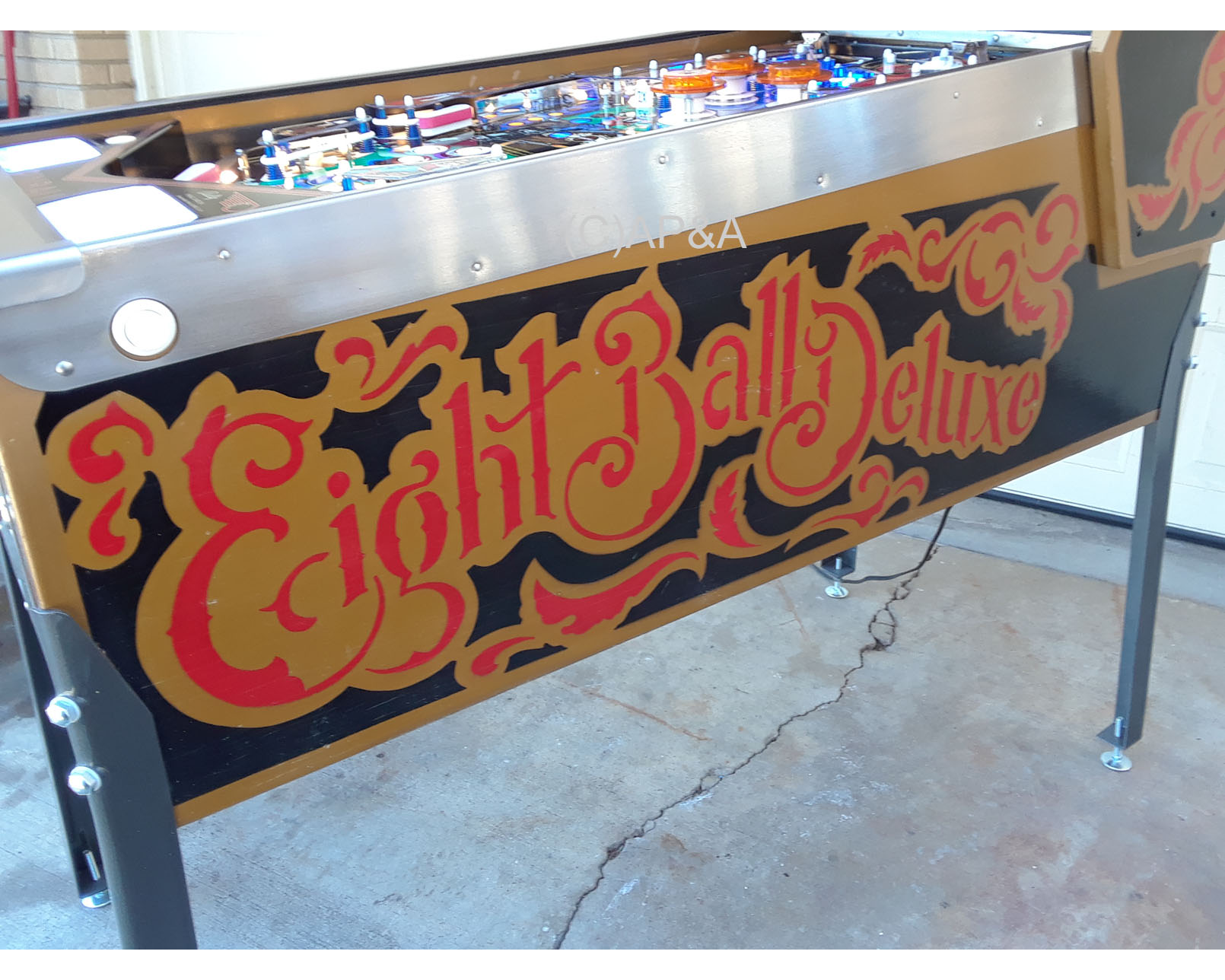

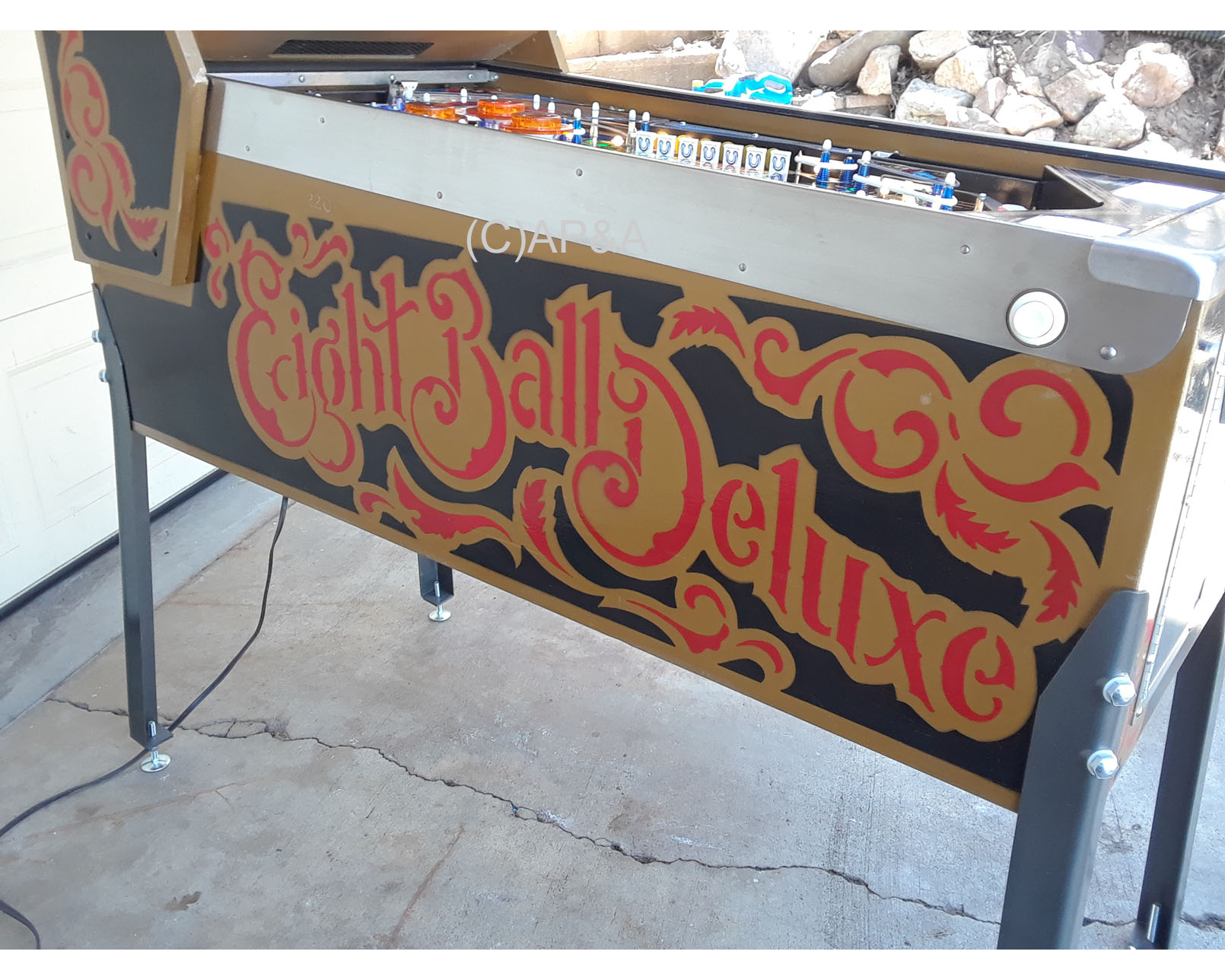

Cabinet left side. Original factory finish. A few small nicks/scuffs have been touched-up here and there, but overall, this game retains it's original factory glossy finish- outstanding. New flipper buttons installed on both sides.

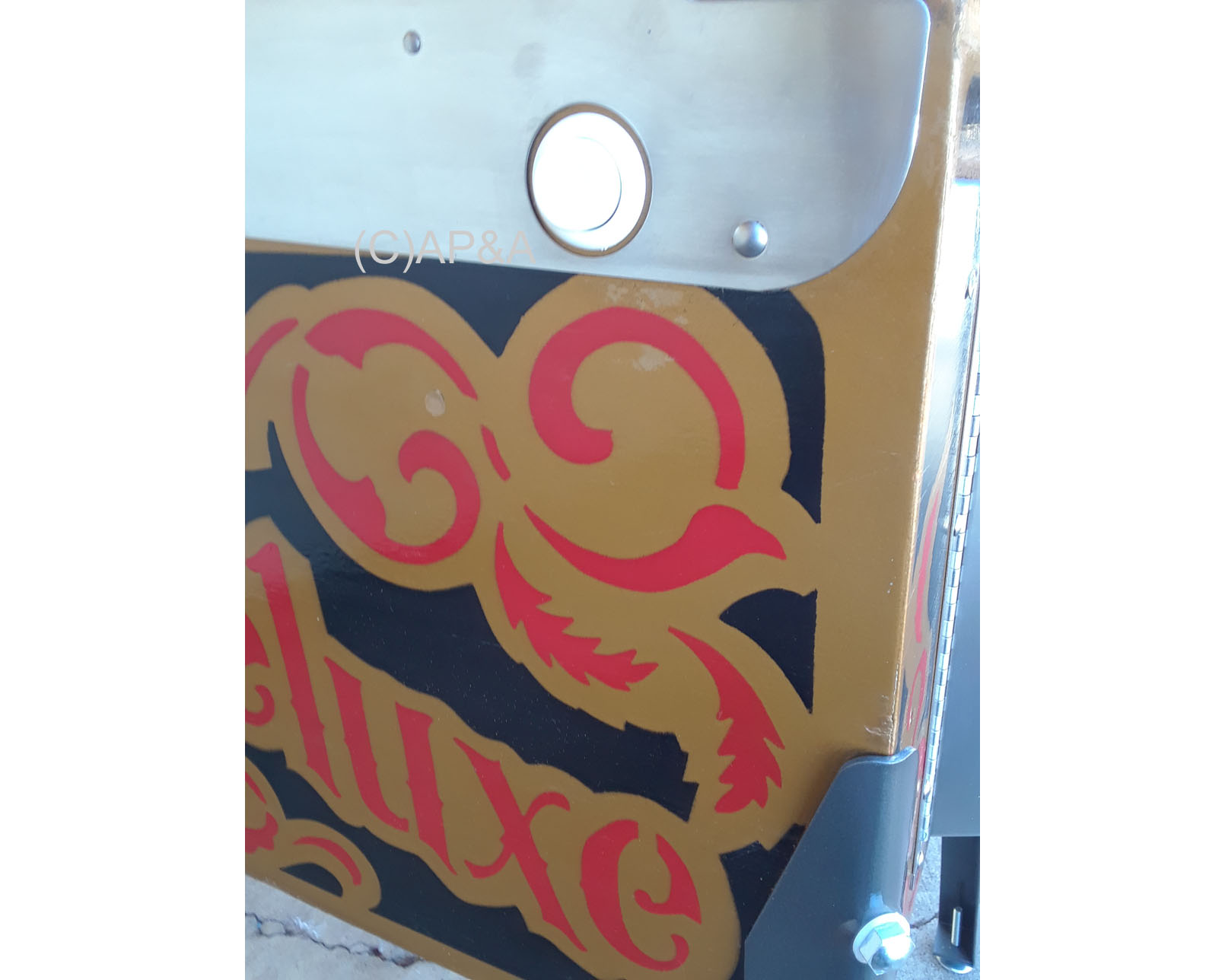

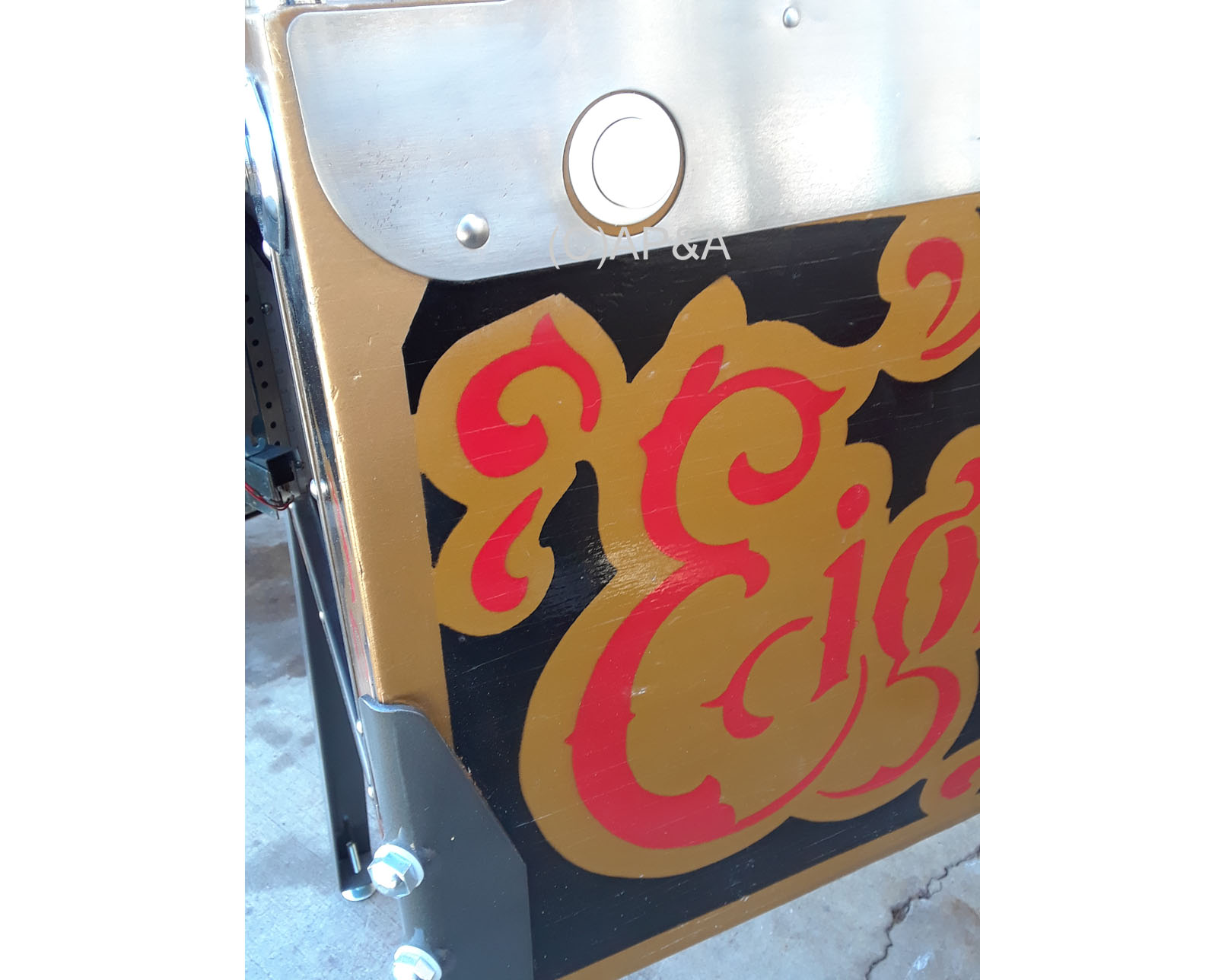

Detail- cabinet left side. A few nicks/scuffs have been touched-up to the best of our ability on this previously-owned game.
Detail- cabinet left side.
Cabinet right side. Legs repainted in original factory color. New leg bolts, protective washers, and leg levelers installed.

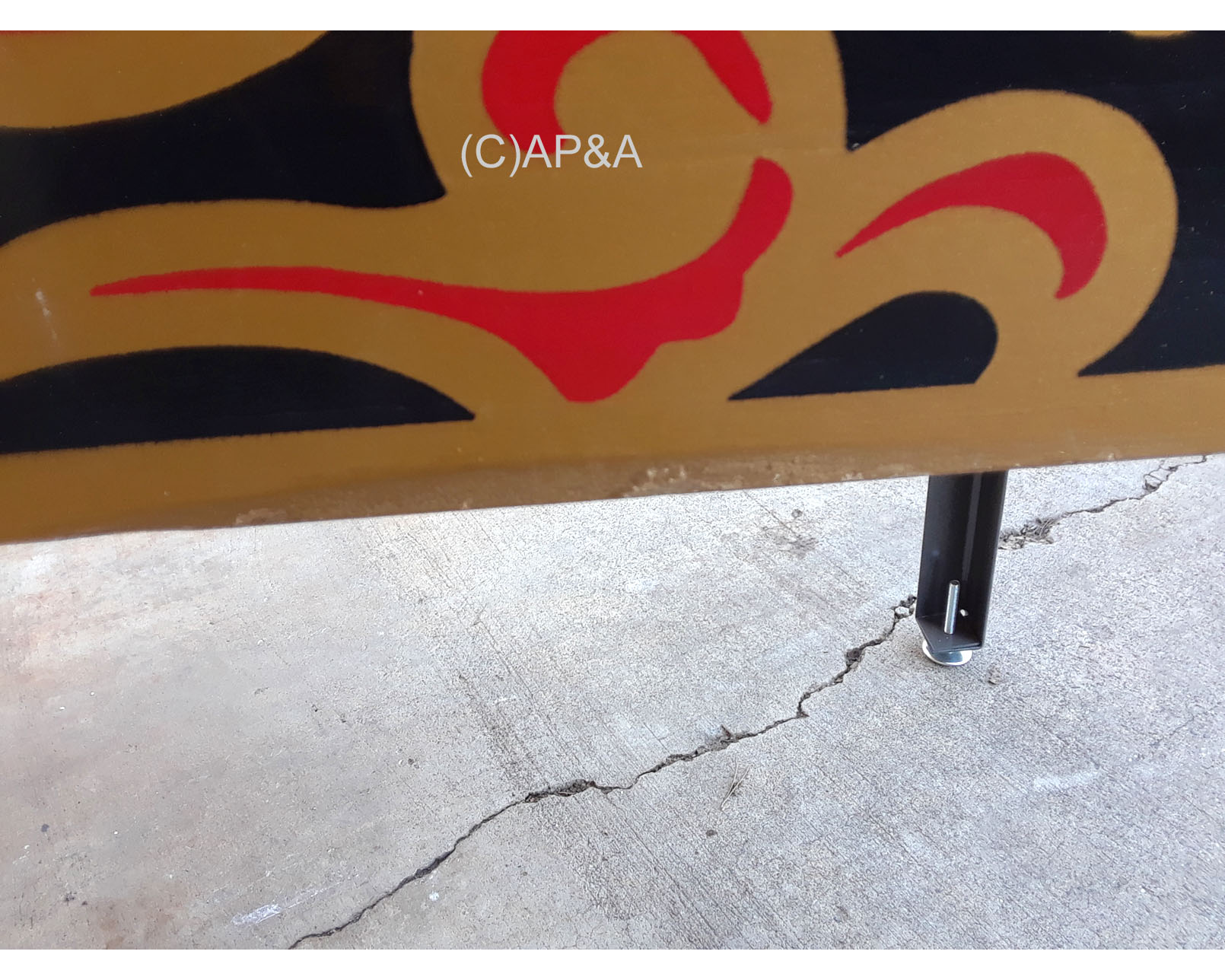

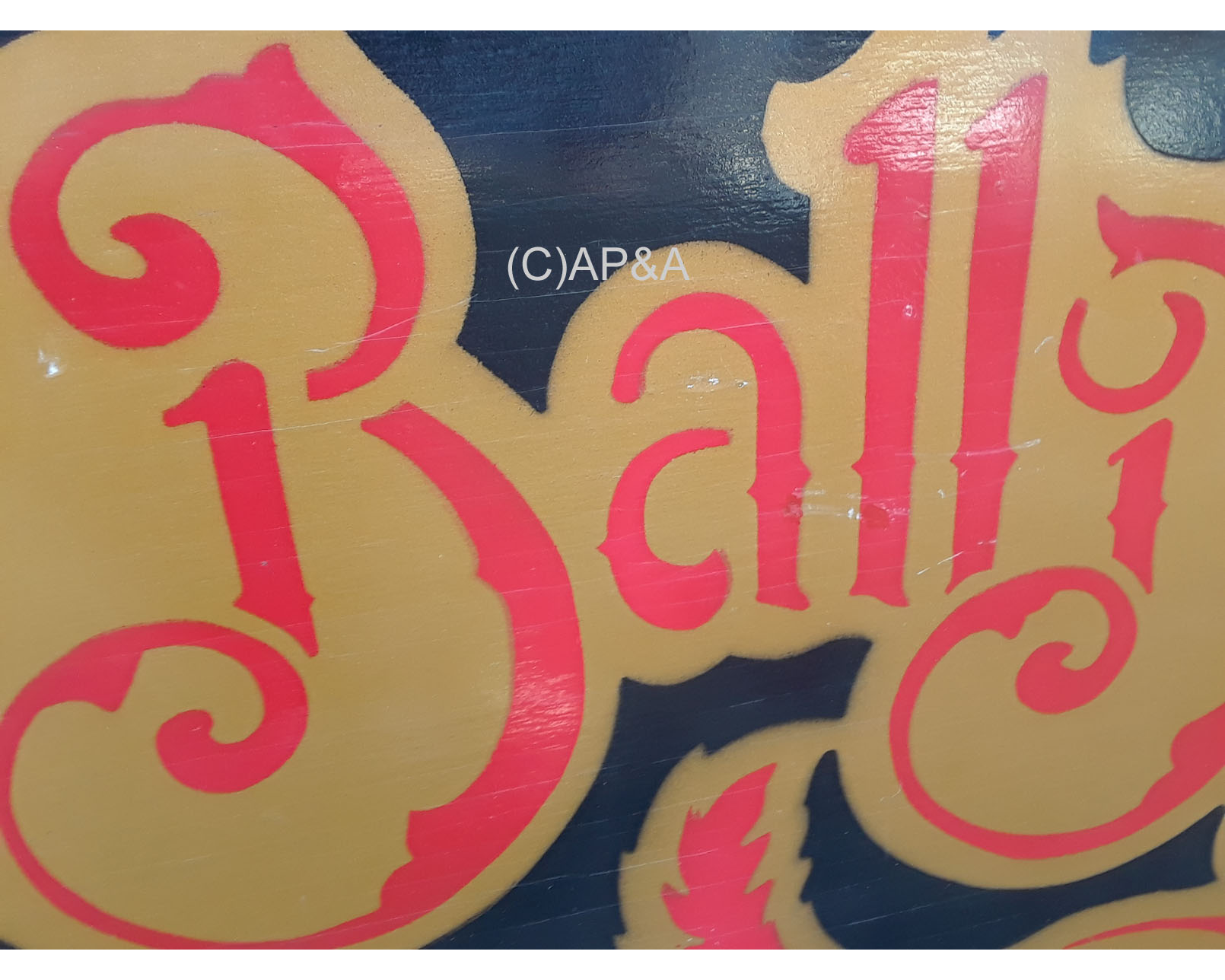

Detail- cabinet right side.
Detail- cabinet right side.
Detail- cabinet right side.

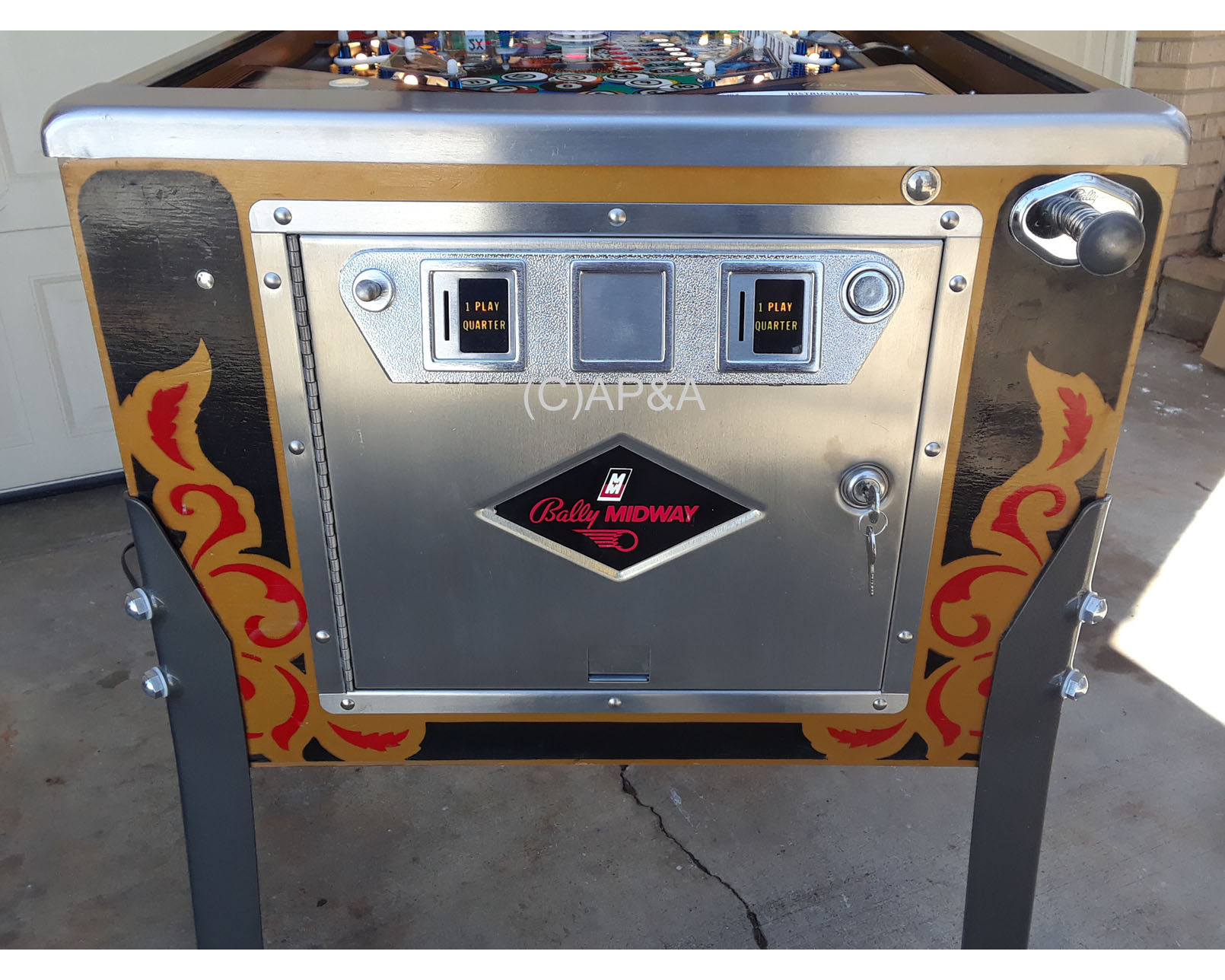

Cabinet front. Coin door fully disassembled, cleaned, rebuilt. New lock installed. Original Bally/Midway logo decal in excellent condition.

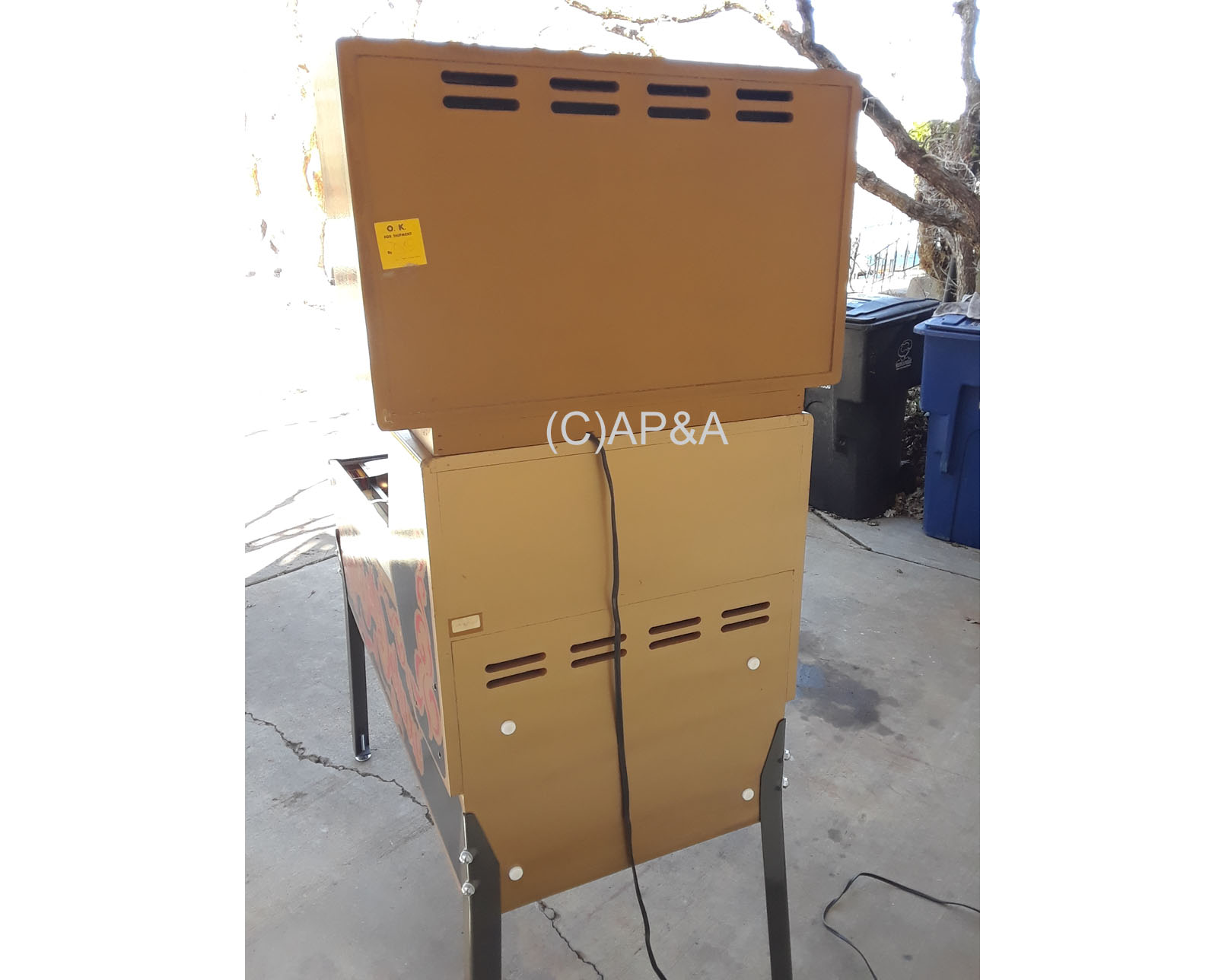

Rear of game. New nylon gliders installed on back of main cabinet and underside of backbox, to replace worn factory gliders. Back of main cabinet has new paint.

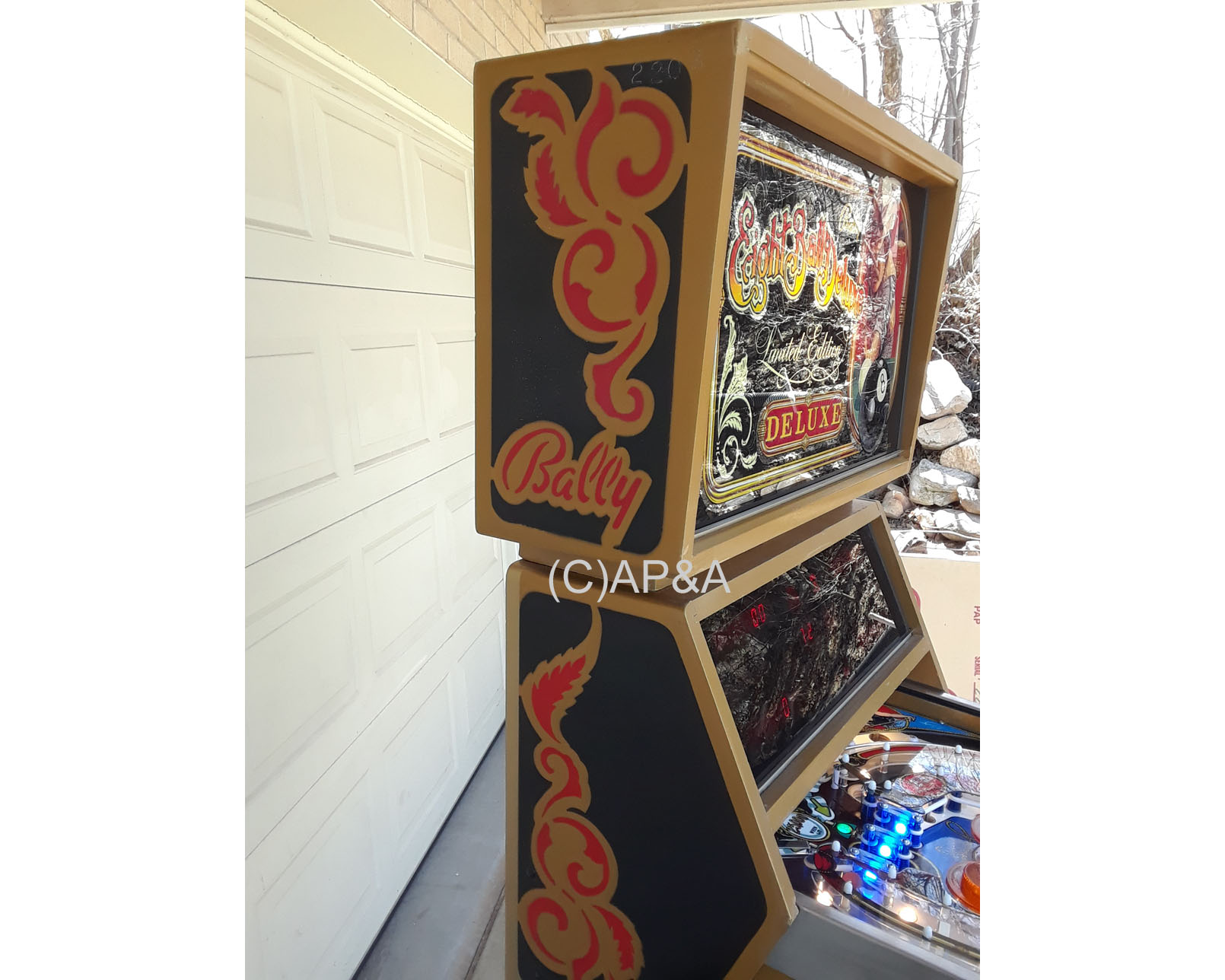

Backbox left side.

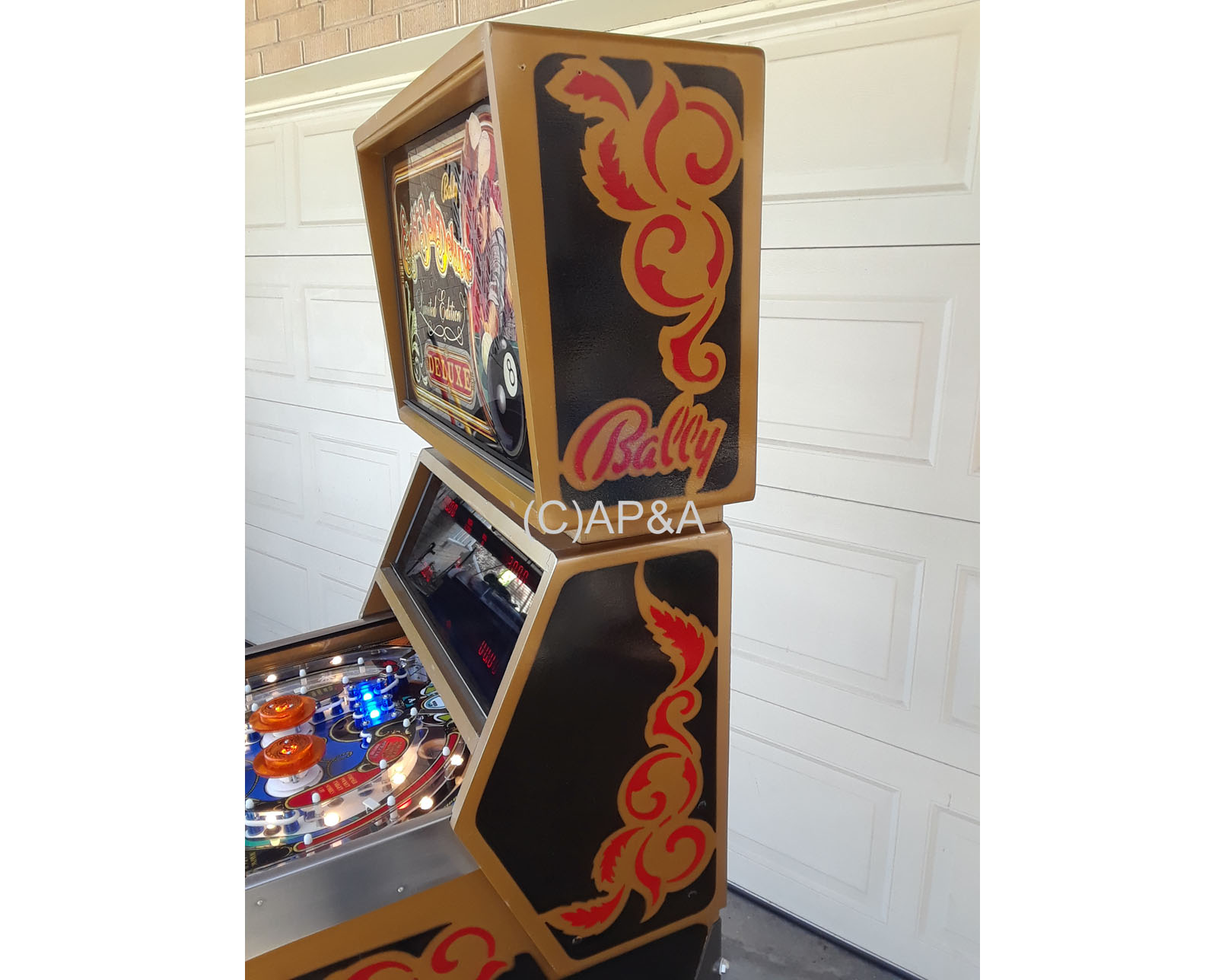

Backbox right side.
Backbox right side. Nail holes from Bally Aladdin's Castle arcade serial number tag are present in upper left corner of backbox side.
Backglass is factory-original and in excellent condition with few signs of past use.

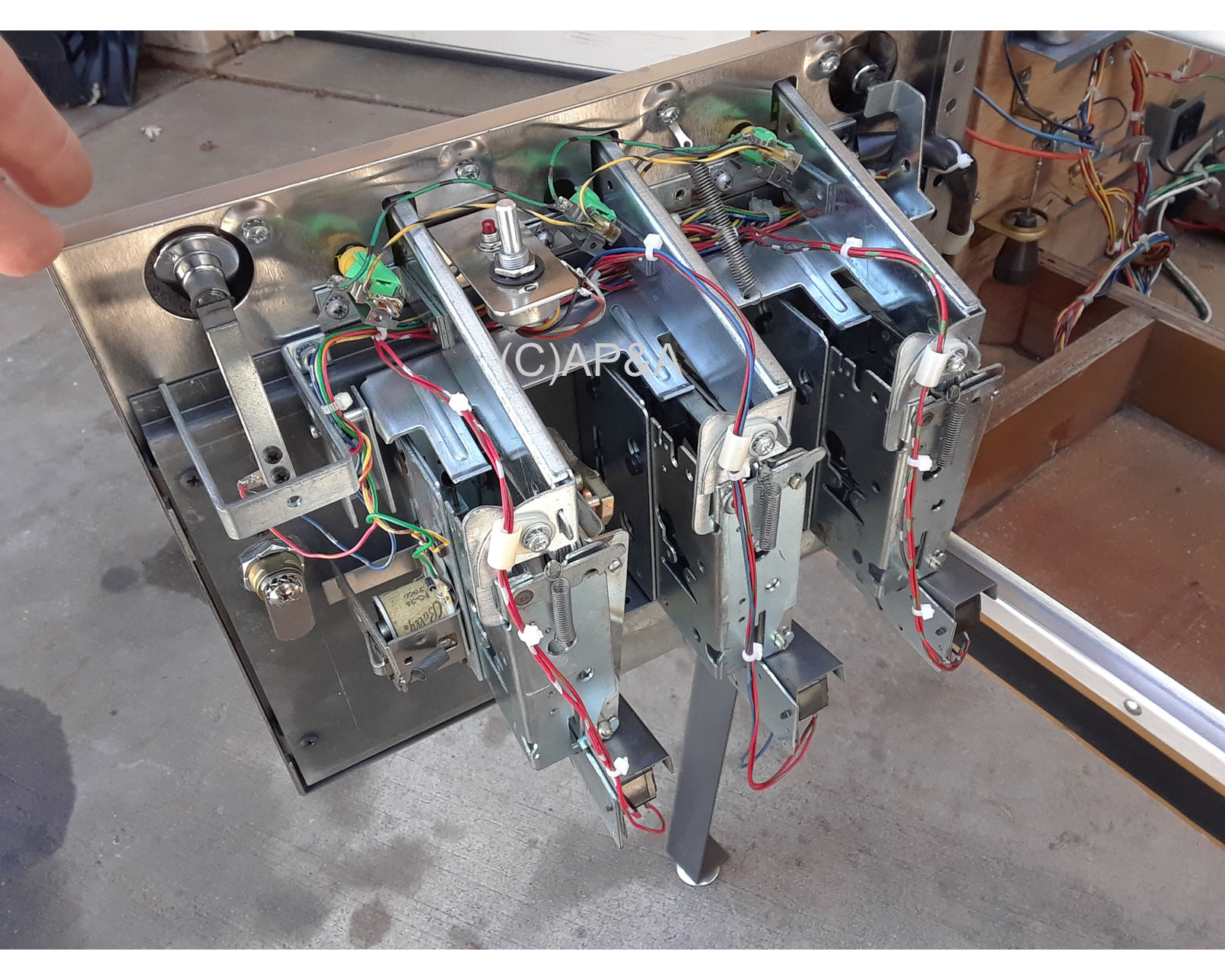

Coin door interior. Every individual component of the coin door and it's frame were removed during the restoration and cleaned/reconditioned and rebuilt. Door has working coin switches for operation. Fully-working quarter coin acceptors are installed. New volume control knob installed.

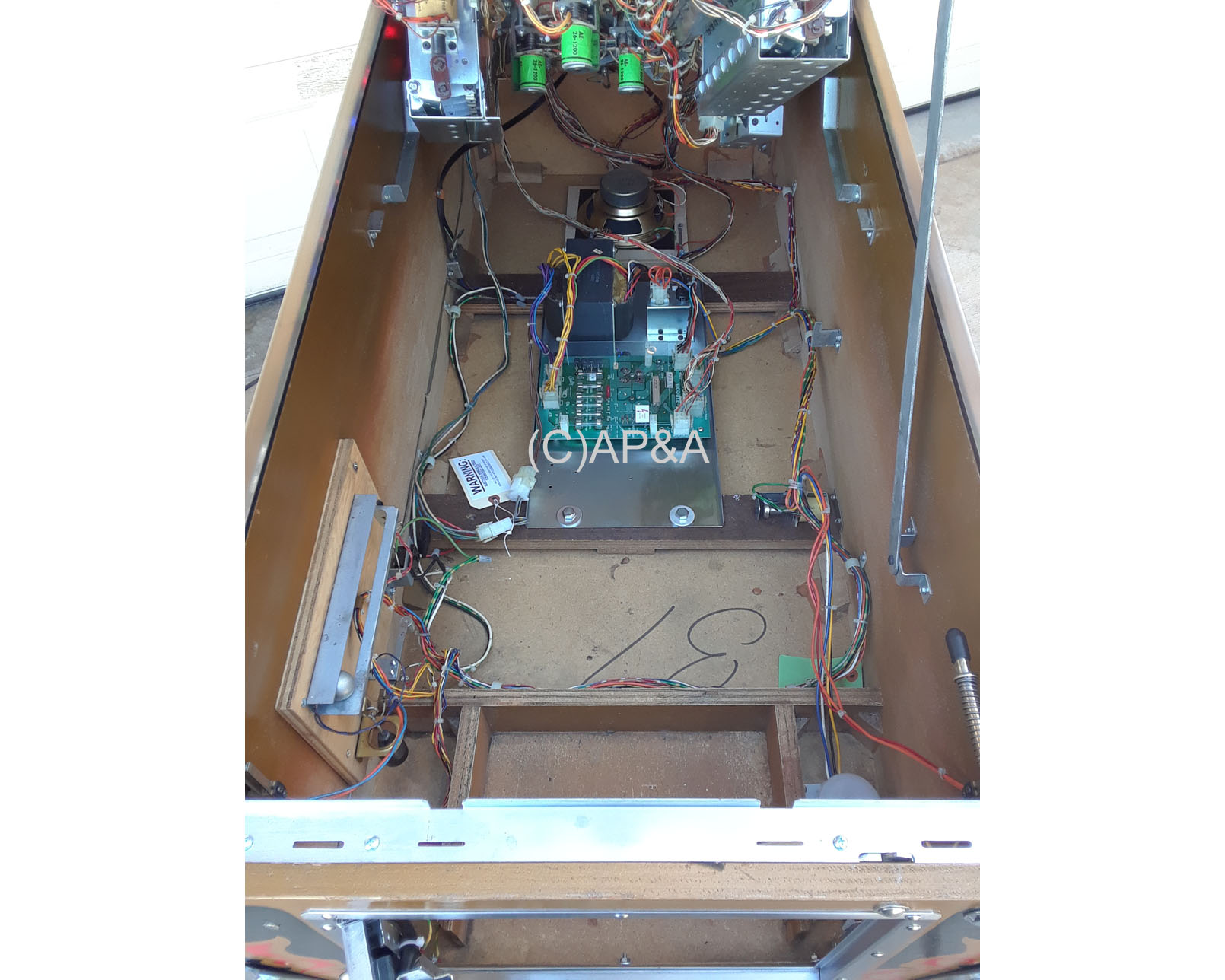

Main cabinet interior. All individual components cleaned and restored. Power supply rebuilt. Coin box & lid are missing, and are not included with game.
Power supply in main cabinet has been fully reconditioned and rebuilt with new parts where needed. A new reproduction clear plastic protective cover for the fuses & components has been installed, along with new mounting clips.
Detail- tilt mech panel. All parts fully rebuilt/reconditioned, and includes a new disc capacitor for the plumb bob tilt switch (common failure part).
Front cabinet interior. New flipper buttons and switches installed. All parts reconditioned.

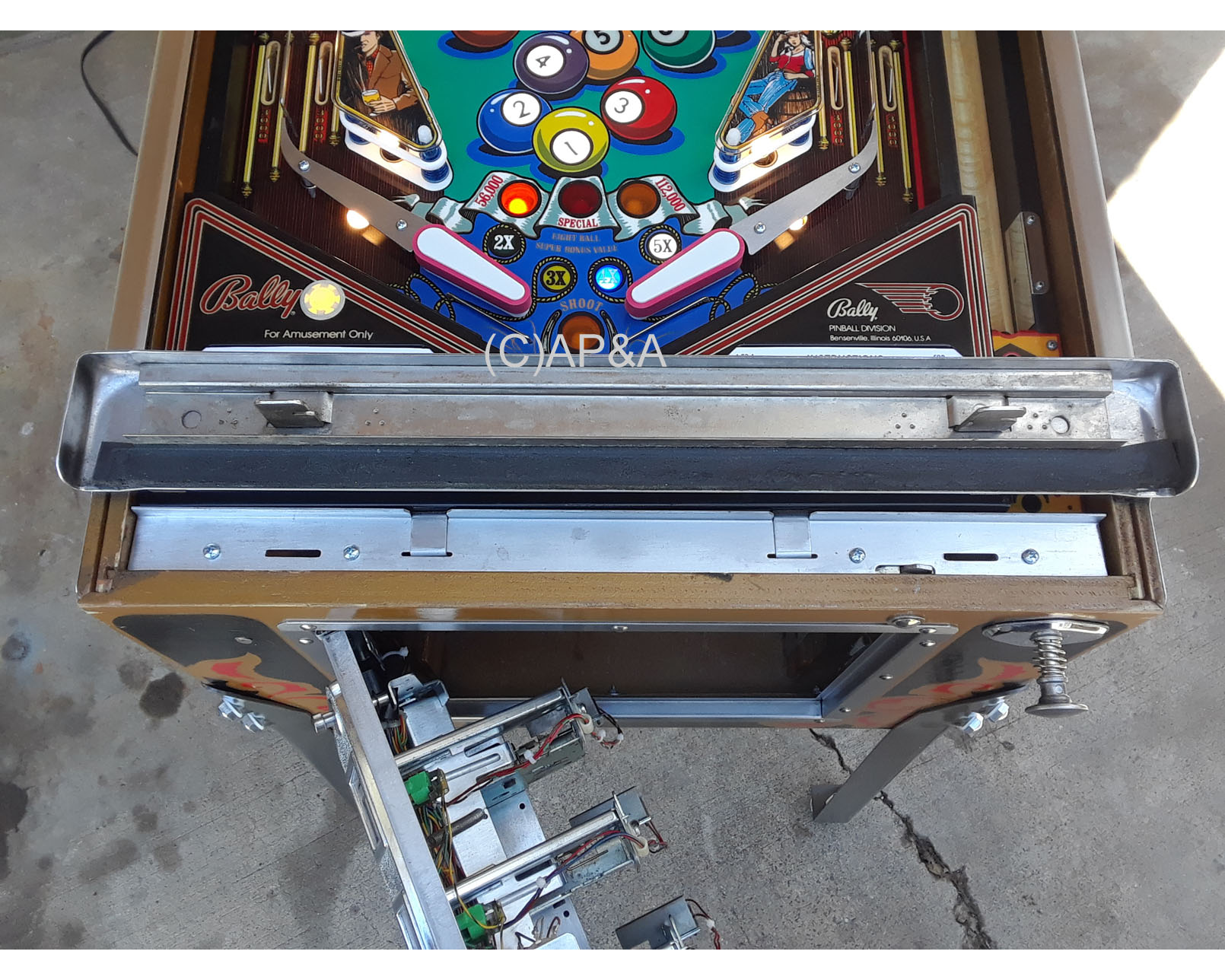

Lockdown bar latch. Fully cleaned and restored with new hardware.
Backbox insert panel. New modern LED light tube installed.
Backbox insert panel- back side. Original sound/speech board, aux. lamp board, lamp driver board. All have been fully cleaned and reconditioned/upgraded where necessary. 100% working. New capacitor kit and volume control pots installed on sound/speech board.
MPU and solenoid/regulator boards in backbox. Both factory original, and reconditioned/upgraded. New remote-mount battery kit installed for MPU board. Upgrade modifications made to solenoid board.
