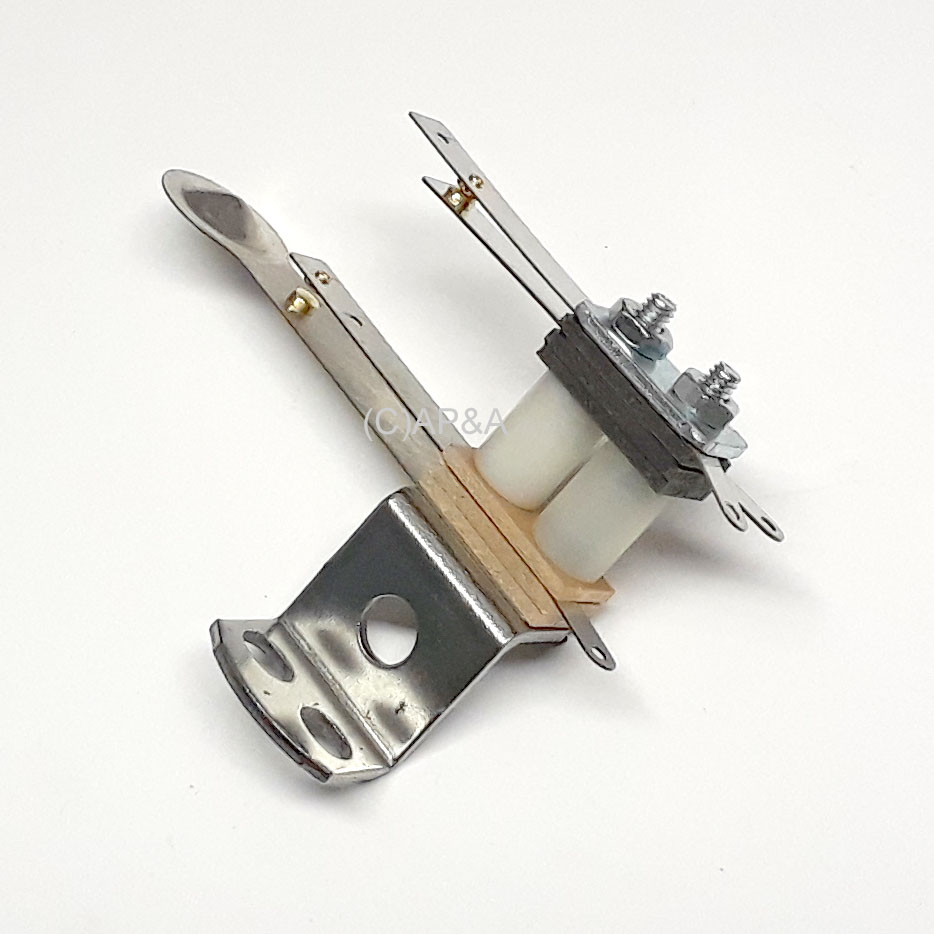

Switch Stack Assembly, Pop Bumper Dual - Left Mount (Gottlieb):

Price: $12.00 each

Status: In Stock
 (4 Available)

Order:



Part #: B-8549
Condition: New
Dual switch stack assembly for use on many Gottlieb electro-mechanical (EM) pinball games, mid-1960s through mid-1970s. Includes detector switch to detect ball hits, and a normally-closed end-of-stroke (EOS) switch switch which opens when the bumper coil plunger pulls in all the way. Left-hand mounting. Bracket can be reversed for right-hand mounting.

CONFIGURATION: Both switch pairs have a common blade that is connected electrically through the mounting screws to the mounting bracket. Common wire attaches to top EOS switch blade (red/white wire in most games). This switch assembly has 1 solder lug on the detector (spoon) switch contacts, and 2 solder lugs on the EOS switch contacts.

COMPATIBILITY: This switch is the earlier version of # B-17108. The only difference between these two switches (early and late versions) is that the common lug is on the top EOS switch blade on the early version, and on the bottom detector switch blade (spoon) on the later version. By moving your common wire from the bottom to the top lug, you can use this switch in place of later # B-17108.

NOTE: No returns on Electronics - all sales final.
