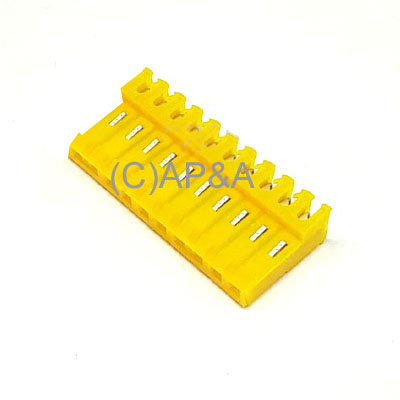

Connector Housing, 10-Position IDC - 0.156 Inch Spacing:

Price: $1.92 each

Status: In Stock


Part #: A31664-10
Condition: New
Connector housing, 0.156-inch spacing, IDC type (Insulation Displacement Connector). IDC housings have built-in pins, and wires are pressed or "staked" into the back of the housing to secure. These connectors accomodate wires in the range of 16-22 AWG (ie: most all common pinball and video game applications).

Locking Ramp: IDC connector housings come with "locking ramp" tabs molded in, which will "lock" into place on corresponding header pin units that have "friction lock" backing. Housings with locking ramp can also be used with header pin units that have no backing for locking ramps, and vice-versa.

Polarizing Keys (Pins): Most connector headers & housings will have one pin that is "blank", which is the "key". This prevents connectors from being installed in the wrong place or direction. New polarizing keys are available separately for some sizes of IDC housings.

Image is sample only- actual size/color of item may vary. Sold individually.

NOTE: No returns on Electronics - all sales final.

  • Ask a question about this item

    Used In The Following Games:
    BALLY: Addams Family, Addams Family Gold, Bugs Bunny's Birthday Ball, Champion Pub, Creature From the Black Lagoon, Doctor Who, Dr. Dude, Gilligan's Island, Judge Dredd, Party Zone, Popeye Saves the Earth, Radical!, Shadow, Theatre of Magic, WhoDunnit, more

    WILLIAMS: Dirty Harry, Fish Tales, Flintstones, Funhouse, Hurricane, Johnny Mnemonic, Medieval Madness, Monster Bash, No Good Gofers, Riverboat Gambler, Tales of the Arabian Nights, White Water, more
